The ZKManet2252UM is an IP66 rugged MESH Radio integrates 4G, GPS/BD, PTT and 2.4G WiFi. It supports HDMI and LAN input, with LCD digital indicator to display device status in real time, and buckle-up battery for easy replacement. It can be applied to multiple scenarios such as a manpack radio, a fixed point relay, or to be installed on a moving vehicle, a robot, or an unmanned ship, etc.
Features
1 Supports 4G-LTE networkSupports LAN and HDMI inputs
2 Supports 2.4G MIMO WiFi and GPS/BD
3 Supports voice intercom
4 High bandwidth up to 82Mbps
5 With LCD to show device parameters in real time
6 Optional buttons for parameters configuration
7 Full IP duplex transparent data transmission
8 Flexible networking and rapid deployment
9 Rugged three-proof IP66 design
10 Convenient operation and maintenance
| Transmission Characteristics |
| Default Frequencies | 1400-1460MHz (562-612MHz) |
| Channel Bandwidth | 5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| Output Power | 36dBm (2x2W) |
| WIFI | 2.4G WIFI (2x100mw MIMO) |
| Modulation Type | DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Encryption | AES |
| Electrical Characteristics |
| Working Voltage | DC 12V |
| Battery Capacity | 1137dBmh |
| Power Consumption | <16W Average |
| Physical Characteristics |
| Weight | 2.5kg (w/ battery) |
| Dimensions | 240*150*60mm |
| IP Rating | IP66 |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -40ºC~70ºC |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |

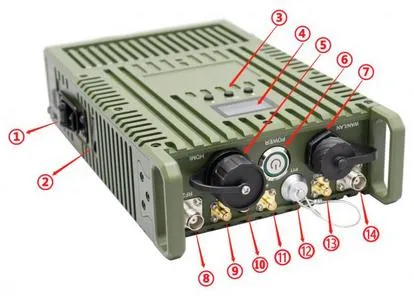

1 Battery butterfly clasp
2 Power input port for main body
3 Configuration buttons for frequency, bandwidth and distance
4 Digital LCD indicator
5 HDMI input interface
6 Power push button
7 LAN interface (RJ45)
8 MESH antenna interface-2
9 WIFI antenna interface
10 MESH signal LED indicator
11 4G antenna interface
12 PTT Mic interface
13 GPS/BD antenna interface
14 MESH antenna interface-1
