ZKMANET1002R 10-40km Long Range COFDM Video Wireless Communication SDR Receiver
The ZKManet1002R features a standard 1U rack-mounted design, making it easy to place in vehicle or ship cabinets. It can receive one channel of image and optionally includes voice intercom functionality. This receiver is part of a broadcast-grade high-definition real-time image transmission system with long transmission distance, powerful functionality, and stable performance. Utilizing COFDM modulation technology, the system encrypts images and data during transmission, exhibiting high reception sensitivity. It can transmit real-time stable audio and video even in high-speed motion and urban building obstruction scenarios. This receiver is suitable for use in public security, armed police, maritime security, and other major events for on-site security, emergency rescue operations, and maritime law enforcement.
◆ Range up to 10km NLOS and 40km LOS
◆ 1U rack mount design
◆ COFDM modulation and H.264 decoding
◆ Dual-antenna diversity reception
◆ Supports two-way voice intercom
◆ High receiving sensitivity
| RF Parameters | Frequency | 300MHz-2.7GHz customizable |
| | Modulation | QPSK(4QAM),16QAM,64QAM |
| | Bandwidth | 2-8MHz |
| | Receiving Sensitivity | -106dBm |
| | Encryption | AES |
| | Range | 10-40km |
| | RF Interface | N-F |
| Video Parameters | Video Output | HD:HDMI |
| | | SD:BNC |
| | Video Modulation | HD:1080P@60 |
| | | SD:720*480 |
| | Video Compression | H.264/H.265 |
| | Memory | TF Card (128G Max); File system:FAT32 |
| Physical/ Environment | Dimensions | 1U |
| | Weight | 3Kg |
| | Working Temp | -20℃~+65℃ |
| Electrical Parameters | Power Supply | DC 12V/AC 220V |
| | Power Consumption | <43dBm |

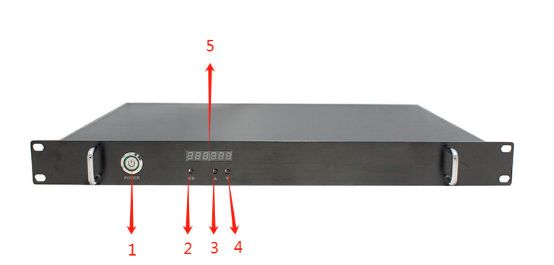

- Power push button
- Left/Right Button - act as menu and confirm function
- Up Button
- Down Button
- 6-segment LED Digital Display

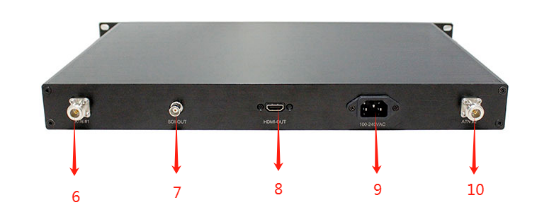

- Antenna interface, N type male
- SDI output
- HDMI output
- Power input interface,100-240V AC
- Antenna interface,N type male
