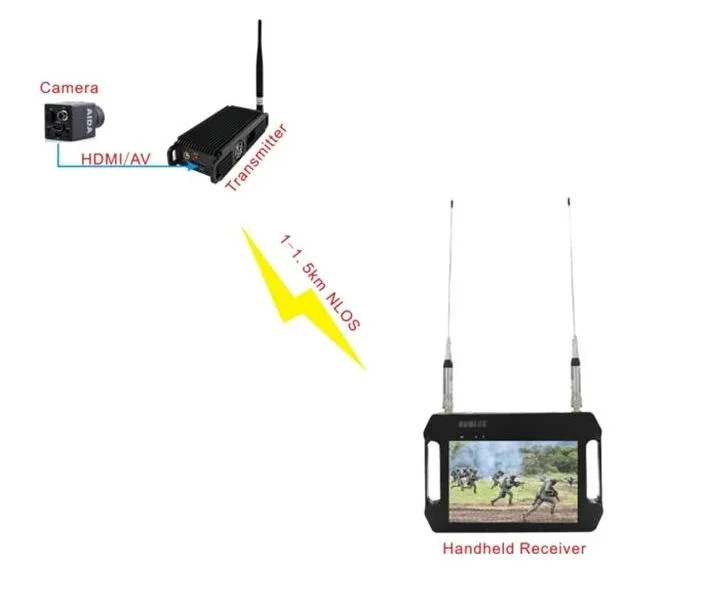

The ZKManet1241T is a lightweight and portable manpack transmitter that delivers HD, stable image transmission. It employs COFDM modulation technology to capture and transmit high-quality images in real-time, even in non-line-of-sight scenarios and during rapid movement. The transmission process ensures that both images and data are encrypted, and it can be paired with the ZKManet1002R receiver. This device is especially well-suited for challenging environments with obstacles, making it perfect for security operations at large events, emergency rescue missions, and the routine activities of public security and armed police forces.
* COFDM modulation and H.264 compression
* HDMI and CVBS dual video inputs
* Supports two-way voice intercom
* Range up to 1.5-3km NLOS and 5-10km LOS
* 60-100ms low link latency
* Strong anti-interference ability
* Manpack design for easy operation
* Up to 5 hours battery life
* Rugged aluminum alloy housing
| Model | ZKManet1241T | Brand | ZKMANET |
| RF Parameters | Frequency | Video: 300MHz-2.7GHz customizable;
Audio: 145Mhz |
| Modulation | QPSK(4QAM)/16QAM/64QAM |
| Output Power | 2W |
| Bandwidth | 2-8MHz |
| Encryption | AES |
| Range | 1.5-3km(NLOS); 5~10km(LOS) |
| RF Interface | N-F |
| Video/Audio Parameters | Video Input | HD:HDMI |
| SD:RCA |
| Video Modulation | HD:1080P,1080i,720P,720i |
| SD:P/N |
| Video Compression | H.264 |
| Audio Interface | K-headphone microphone interface |
| Physical/Environment | Dimensions | 220*120*45(mm)(L×W×H)(w/ battery) |
| Weight | 1.3kg(w/ battery) |
| Working Temp | -20ºC~+65ºC |
| Electronic Parameters | Power Supply | DC 12V |
| Battery Capacity | 4500mAh |
| Power Consumption | <237dBm |

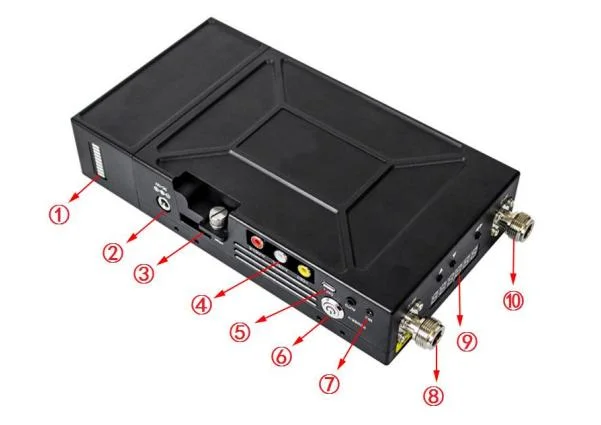

- Battery Indicator
- Power Input Interface
- HDMI Input Interface
- AV Input Interfaces - Audio Left, Audio Right and Video (CVBS)
- Data Interface (Reserved)
- Power Switch Button
- MIC Interface (Intercom)
- RF Antenna Interface - N Female, for Video
- Control Panel - 6 Digit LED 7-Segment Display
- RF Antenna Interface - N Female, for Data
