Product Description
The ZKManet2451UM is a durable MANET mesh transceiver specifically engineered for transmitting video data from UAVs. With a robust power output of 4 watt, it is well-suited for various mesh applications, including public security, armed police operations, fire control, and use. Its multi-hop capability significantly extends transmission range, with each hop covering distances of 15-30 km in a line-of-sight scenario. Capable of achieving data rates of up to 82 Mbps, it can seamlessly transmit video, data, and audio simultaneously. Additionally, AES encryption safeguards the security of the transmitted data.
Product Parameters
| Item No. | ZKMANET2451UM | Band |
| RF Parameters | Working Frequency | 1400-1460MHz(300MHz-3.8GHz Customizable) |
| Working Bandwidth | 5/10/20/40MHz,20MHz(typical) |
| RF Channel | 2T2R |
| Transmit Power | 4W |
| Network Parameters | Nodes | 10 nodes(customizable) |
| Throughout Rate | 82Mbps |
| Encryption | AES |
| Coverage Distance | 40-49KM(Line-of-sight) |

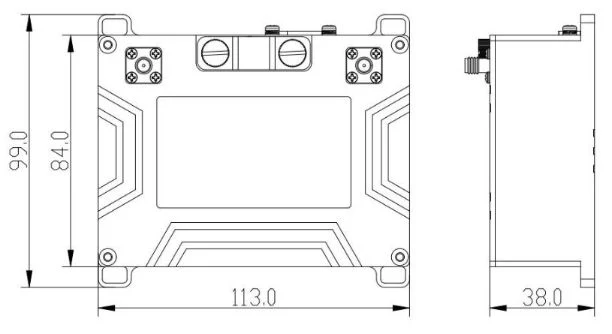

| Physicals/Environment | Dimension | 113*84*38mm |
| Weight | 450g |
| Working Temperature | -40ºC~+65ºC |
| Protection Rating | IP54 |
| Electrical Characteristics | Power Supply | DC12-24V |
| Power Consumption | <12W |
| Other | HDMI Interface | Support |
| Network Port | Support |
| TTL serial port | Support |
Features
1. Body size 113*84*38mm;
2. Weight 450g;
3. Large bandwidth, up to 82Mbps;
4. Air-to-ground line-of-sight transmission distance of 40-49 kilometers;
5. IP data transparent transmission;
6. Support TTL serial port transmission;
7. Supports webcam access;
8. Support HDMI video input
Centerless self-organizing network, automatic path selection, flexible networking, easy to use.
Multi-hop to expand the coverage area and expand the coverage distance.
Strong anti-interference.
Good bypassing radioactivity.
Detailed Photos
1. MESH Antenna Interface
2. HDMI Video Input
3. MESH Antenna Interface
4. Network port and TTL serial port
5. Power charge connector

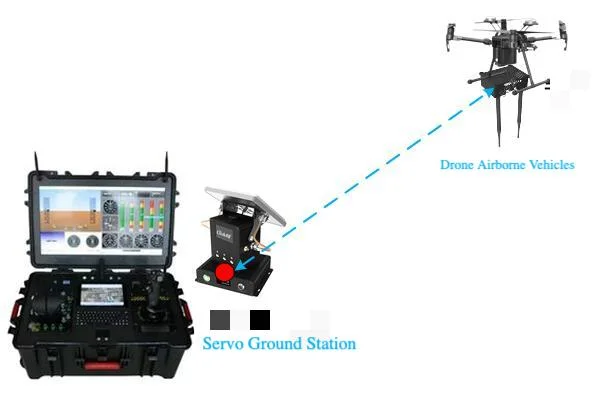

Application
